Eterno Pedestal Paver System

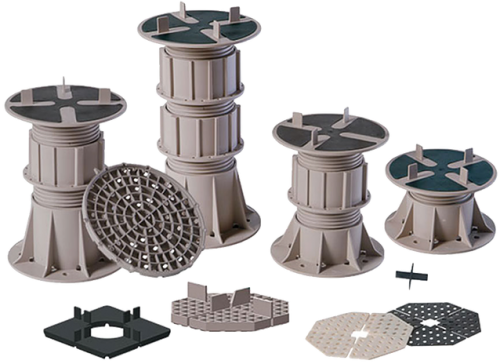

Self Leveling Pedestal Paver
For estimates or samples, please click the button below.
Self Leveling Pedestals: Justify up to 5% slopes.
SE0
28 – 38mm
1.1″ – 1.5″
SE1
37.5 – 50mm
1.48″ – 1.97″
SE2
50 – 75mm
1.97″ – 2.95″
SE3
75-120mm
2.95″ – 4.72″
SE4
120 – 170mm
4.72″ – 6.69″
SE5
170 – 215mm
6.69″ – 8.46″
SE6
140 – 230mm
5.51″ – 9.06″
SE7
185 – 275mm
7.28″ – 10.83″
SE8
235 – 325mm
9.25″ – 12.8″
SE9
205 – 345mm
8.07″ – 13.58″
SE10
250 – 385mm
9.84″ – 15.16″
SE11
300 – 400mm
11.81″ – 15.75″
SE12
270 – 455mm
10.63″ – 17.91″
SE13
315 – 500mm
12.4″ – 19.69″
SE14
365 – 550mm
14.37″ – 21.65″
Coupler
Extension for SE:
SE3 to SE14 only
3515
XL Head for SE Pedestal
3519
Head Locking Latch for SE

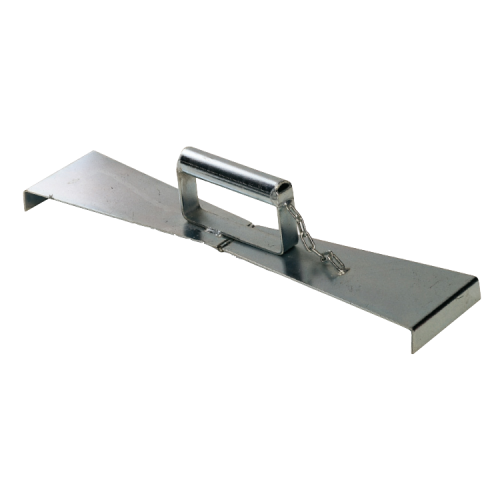

Lifting Handle

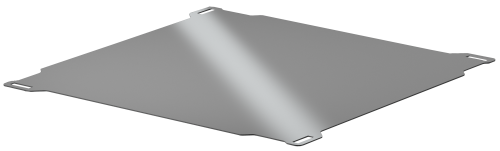

Safety Plate

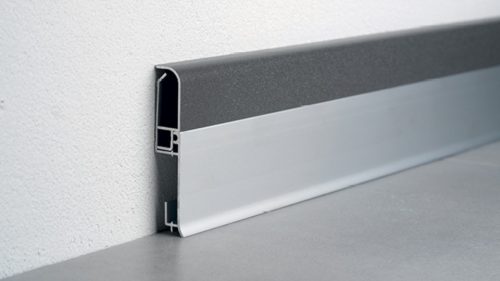

Outdoor Skirting
LGH2
2mm Rubber Shim. Non slip and anti noise.
LGH3
3mm Rubber Shim. Non slip and anti noise.
Wood Joist Head

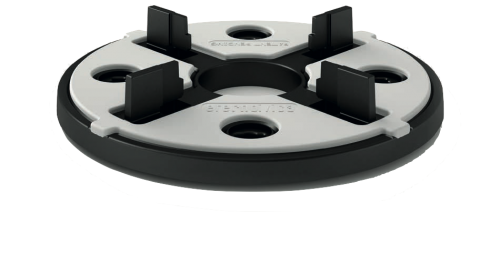

Wind Lift Head
*Coming Soon
Plastic Plug
Adjustment Key
L Shaped Support
*Coming Soon
T Shaped Support
*Coming Soon

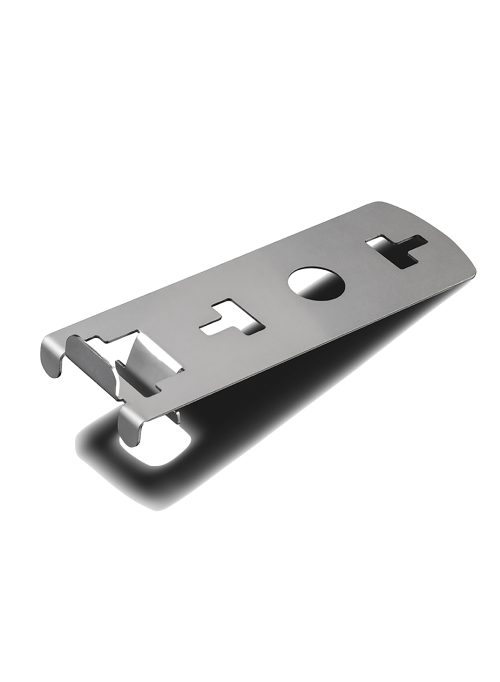

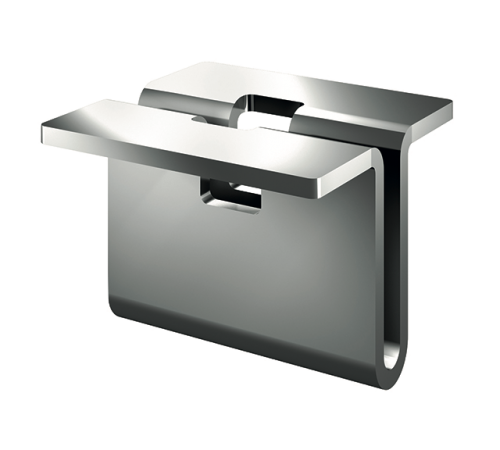

Vertical Clip Enclosure – Upper Clip

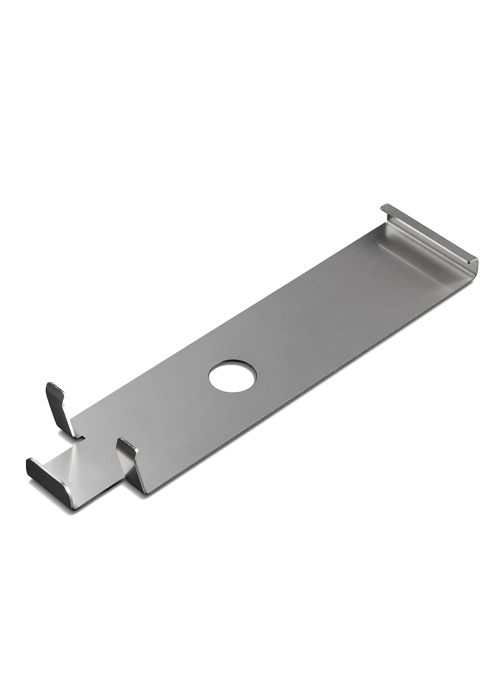

Vertical Clip Enclosure – Lower Clip
Wall Spring

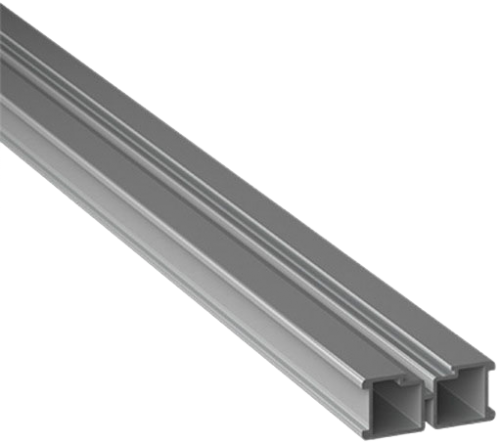

Aluminum Joist

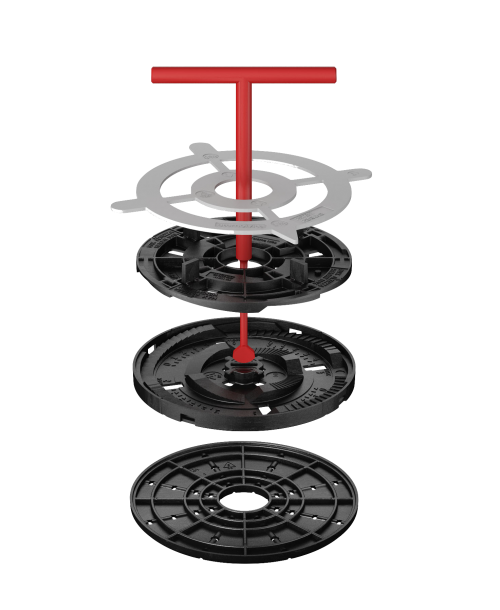

Star.T
Adjustable from 10 to 30 mm
Adjustment Key
Slope Compensator

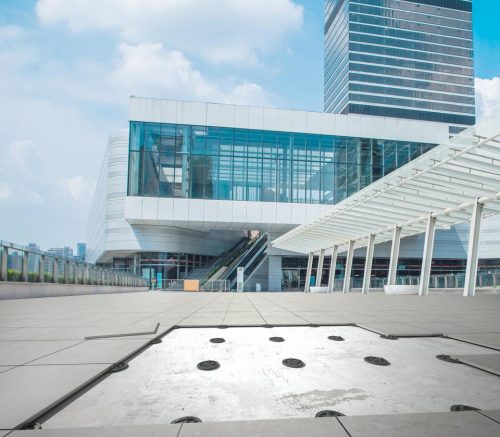

The adjustment of Star.T to the millimeter makes it possible to realize elegant and stable floorings, speeding the installation and giving solidity and precision to the entire pavement.
STAR.B is the only extension that fits Star.T, that enables to reach NM1 and SE0 adjustable supports; only one height for a versatile and simple product: it is placed under the Star.T increasing its height by 5mm and with the possibility to add more Star.B on top of eachothers in case of need.
Using 2 Star.T Extensions with the Star.T support you can reach a height of 25 mm: from this height you can use the NM supports.
Using 3 Star.T Extensions with the Star.T support you can reach a height of 30 mm, height beyond which it is possible to use the SE supports.
*Hercules Screwjack Pedestal with shim
*Slope Corrector
Hercules ScrewJack Pedestal Paver System
The Hercules Pedestal System is designed to provide an durable support for a raised surface. This system can provide noise reduction along with improved drainage and precise joint spacing. Minimal maintain cost is required with Hercules Screwjack Pedestal because of easy access underneath. Beautiful and precisely elevated spaces can be created on roofs, plazas, and many more spaces.
*Click image to enlarge
Hanover Pedestal Paver System
High-Tab® Pedestal
7” across flats, 5/8” thick, 1/8” spacers • for heights 5/8” up to 2”
Compensator® Leveling System
7 3/4” diameter, 1/2” thick
• can be used under the Elevator® System to compensate for roof slope
Leveling Shims
7” across flats
black : 1/16” thick, white : 1/8” thick
• can be used on top of the Elevator® System for final leveling adjustments
Guardian® Paver System
Top Plate: 6” sq, Bolt: 3/4” diameter Base: 7 1/2” diameter
•can be used on top of the Elevator® System; for wind uplift
resistance
2” Base & Top
2″- 3″
3” Base & Top
3” – 4 3/4”
4” Base & Top
4 3/4” – 7 3/4”
3” Base,
4” Top & Coupler
7 3/4”- 10”
4” Base,
4” Top & Coupler
9”- 12”
4” Base,
4” Top & 2 Couplers 12”- 16”
Click Image to Enlarge
Snapjack™
Elevated Interlocking Corner Connectors
Patent Pending
Top View
(Disconnected into 4 Pieces)
Each Corner Engraved with Numbers
Side View
Bottom View
(4 Corners #1,#2,#3,#4 Snapped Together)
Diameter – 5-5/8″
Height – 1/2″
Static Load – 8,800 lbs
Support – Surface supported by 64 Legs
Locks – 16 latch locks; 4 sides w/2 male Parts; 4 sides w/2 female parts
Flammability – Meets UL94-HB standards
Material – High Impact Polypropylene
Fungus & Mildew Resistant – Yes
Service Range – -30° to +170°
Tensile Strength (psi) – ASTM D638 5300
Flexural Modulus – (105 psi, 73° F) ASTM D790…1.6
Tensile Modulus – (105 psi) ASTM 638…………….82
Specific Gravity – ASTM D792………………………….093
Specific Volume – In3/lb.………………………………30.5
Electrical Specifications
ARC Resistance, – SEC. ASTM D495………………150
Dielectric Constant – (1M Hz)…………………………2.5
Dielectric Strength – (Volts/Mil………………………660
Resistant to – Weak Acids, Weak Alkalis ,Strong Alkalis

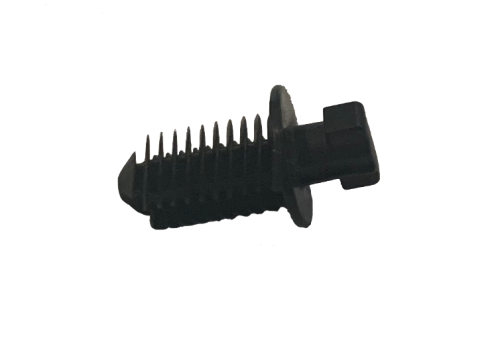

Plastic Plug
(For Use with Wood Structural Panels) Used to Create Proper Spacing and prevent lateral movement
Screw 1/2″
(For Use with Wood Structural Panels) Used for Stacking Snapjacks & various other applications
Washer &Screw 7/8″
(For Use with Wood Structural Panels) Provides Wind Lift Support
Polyurethane Adhesive
(For Use with Deckstone Porcelain Structural Panels)
Available at (http://www.loctiteproducts.com/p/pl_ca_prem/overview/Loctite-PL-Premium-Polyurethane-Construction-Adhesive.htm)

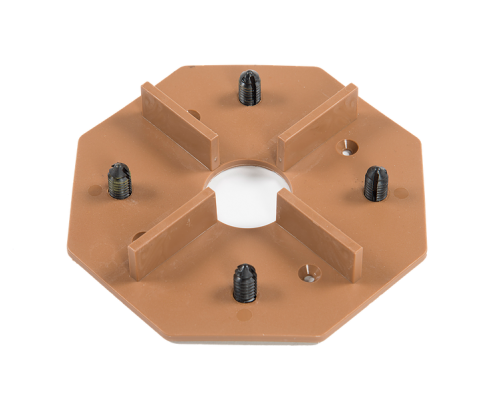

Deckwise
Deckwise tile connectors have a unique design to eliminate the worry of loose or uneven gaps between tiles. Made in the USA these deck tile connectors make installation easier for decking panels.
Atlas Rubber Pedestal
Flexible rubber pesdestals can accommodate the subtle freeze thaw expansion that may occur with some materials while at the same time protecting the materials below.
Composition: SBR Rubber
Shore Hardness: 80 (Approximate.)
*Atlas Rubber Pedestal with Shim
Apollo Plastic Pedestal
This lightweight stackable and reusable pedestal can ensure improved drainage, and precise consistent joint spacing.
Composition: High Density Polypropylene
Low-Temp. Brittleness (ASTM D 748) -96 F
Softening Temperature (ASTM D 1525) 260 F
*Atlas Plastic Pedestal
Adonis Plastic Pedestal
These plastic pedestals provide and ensure improved drainage along with precise and consistent joint spacing.
Composition: High Density Polypropylene
*Adonis Plastic Pedestal
