Eterno Pedestal System

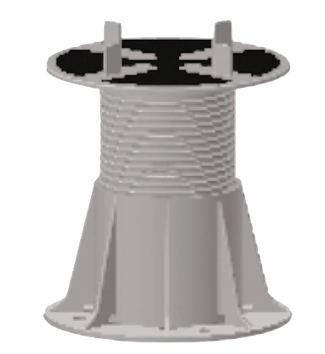

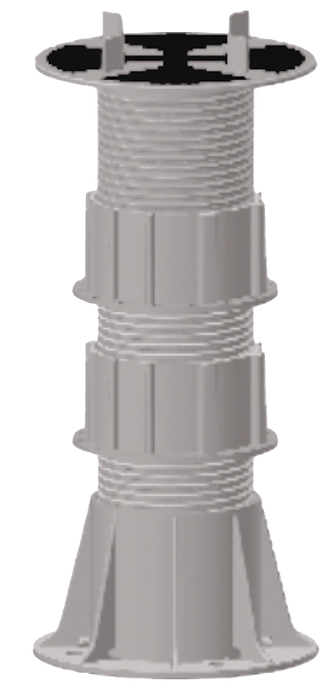

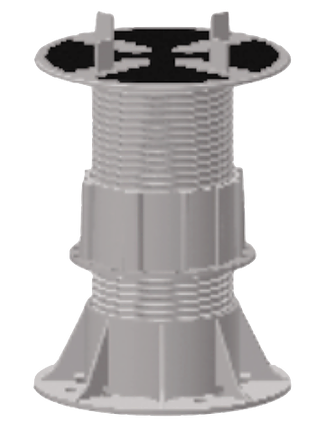

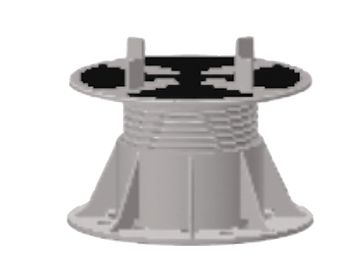

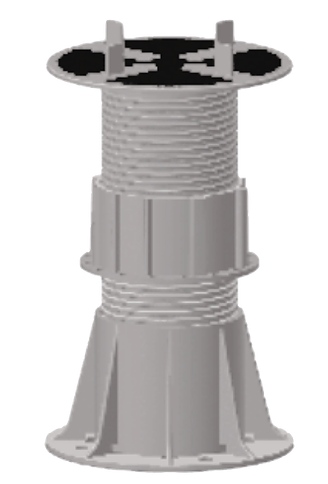

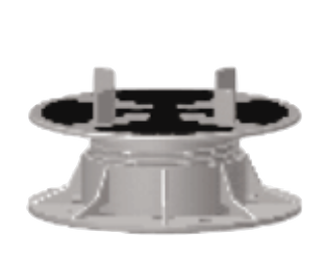

Self Leveling Pedestal

For estimates or samples, please click the button below.

Self Leveling Pedestals: Justify up to 5% slopes.

SE0

28 – 38mm

1 2/16 – 1 8/16in

SE1

37.5 – 50mm

1 8/16 – 1 3/16in

SE2

37.5 – 50mm

1 8/16 – 1 3/16in

SE3

37.5 – 50mm

1 8/16 – 1 3/16in

SE4

120 – 170mm

4 11/16 – 6 11/16in

SE5

170 – 215mm

6 11/16 – 8 7/16in

SE6

140 – 230mm

5 8/16 – 9 2/16in

SE7

185 – 275mm

7 5/16 – 10 13/16in

SE8

235 – 325mm

9 5/16-12 13/16in

SE9

205 – 345mm

8 2/16-13 10/16in

SE10

250 – 385mm

9 -15 3/16in

SE11

300 – 400mm

11 13/16 -15 11/16in

SE12

270 – 455mm

10 10/16 – 17 15/16in

SE13

315 – 500mm

12 6 /16 – 19 11/16in

SE14

365 – 550mm

14 6/16 – 21 11/16in

Coupler

Extension for SE:

SE3 to SE14 only

3515

XL Head for SE Pedestal

3519

Head Locking Latch for SE

LGH2

2mm Rubber Shim. Non slip and anti noise.

LGH3

3mm Rubber Shim. Non slip and anti noise.

*Hercules Screwjack Pedestal with shim

*Slope Corrector

Hercules ScrewJack Pedestal

The Hercules Pedestal System is designed to provide an durable support for a raised surface. This system can provide noise reduction along with improved drainage and precise joint spacing. Minimal maintain cost is required with Hercules Screwjack Pedestal because of easy access underneath. Beautiful and precisely elevated spaces can be created on roofs, plazas, and many more spaces.

For estimates or samples, please click the button below.

*Click image to enlarge

Hanover Pedestal System

For estimates or samples, please click the button below.

High-Tab® Pedestal

7” across flats, 5/8” thick, 1/8” spacers • for heights 5/8” up to 2”

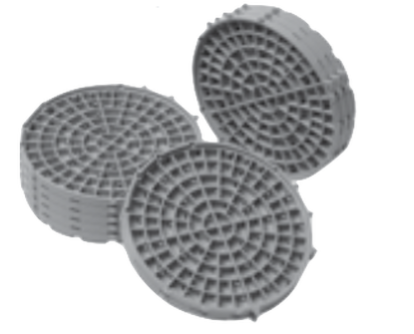

Compensator® Leveling System

7 3/4” diameter, 1/2” thick
• can be used under the Elevator® System to compensate for roof slope

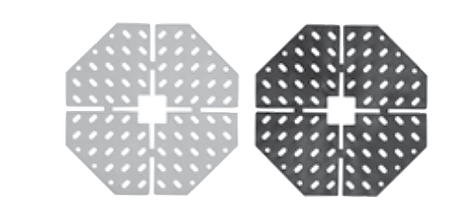

Leveling Shims

7” across flats
black : 1/16” thick, white : 1/8” thick
• can be used on top of the Elevator® System for final leveling adjustments

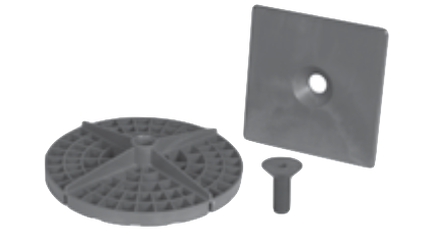

Guardian® Paver System

Top Plate: 6” sq, Bolt: 3/4” diameter Base: 7 1/2” diameter
•can be used on top of the Elevator® System; for wind uplift

resistance

2” Base & Top

      2″- 3″

3” Base & Top

   3” – 4 3/4”

4” Base & Top

4 3/4” – 7 3/4”

3” Base,

4” Top & Coupler

7 3/4”- 10”

4” Base,

4” Top & Coupler
9”- 12”

4” Base,

4” Top & 2 Couplers 12”- 16”

Click Image to Enlarge

Snapjack™

Elevated Interlocking Corner Connectors

Patent Pending

For estimates or samples, please click the button below.

Top View

(Disconnected into 4 Pieces)

Each Corner Engraved with Numbers

Side View

Bottom View

(4 Corners #1,#2,#3,#4 Snapped Together)

Diameter – 5-5/8″

Height – 1/2″

Static Load – 8,800 lbs

Support – Surface supported by 64 Legs

Locks – 16 latch locks; 4 sides w/2 male Parts; 4 sides w/2 female parts

Flammability – Meets UL94-HB standards

Material – High Impact Polypropylene

Fungus & Mildew Resistant – Yes

Service Range – -30° to +170°

Tensile Strength (psi) – ASTM D638 5300

Flexural Modulus –  (105 psi, 73° F) ASTM D790…1.6

Tensile Modulus –  (105 psi) ASTM 638…………….82

Specific Gravity – ASTM D792………………………….093

Specific Volume – In3/lb.………………………………30.5



Electrical Specifications

ARC Resistance, –  SEC. ASTM D495………………150

Dielectric Constant –  (1M Hz)…………………………2.5

Dielectric Strength –  (Volts/Mil………………………660

Resistant to – Weak Acids, Weak Alkalis ,Strong Alkalis

Protection Mat

3.2 mm thick 9 in. diameter

Plastic Plug

(For Use with Wood Structural Panels) Used to Create Proper Spacing and prevent lateral movement

Screw 1/2″

(For Use with Wood Structural Panels) Used for Stacking Snapjacks & various other applications

Washer &Screw 7/8″

(For Use with Wood Structural Panels) Provides Wind Lift Support

Polyurethane Adhesive

Deckwise

Deckwise tile connectors have a unique design to eliminate the worry of loose or uneven gaps between tiles. Made in the USA these deck tile connectors make installation easier for decking panels.

Atlas Rubber Pedestal

Flexible rubber pesdestals can accommodate the subtle freeze thaw expansion that may occur with some materials while at the same time protecting the materials below.

Composition: SBR Rubber

Shore Hardness: 80 (Approximate.)

*Atlas Rubber Pedestal with Shim

Apollo Plastic Pedestal

This lightweight stackable and reusable pedestal can ensure improved drainage, and precise consistent joint spacing.

Composition: High Density Polypropylene

Low-Temp. Brittleness (ASTM D 748) -96 F

Softening Temperature (ASTM D 1525) 260 F

Apollo plastic pedestal*Atlas Plastic Pedestal

Adonis Plastic Pedestal

These plastic pedestals provide and ensure improved drainage along with precise and consistent joint spacing.

Composition: High Density Polypropylene

*Adonis Plastic Pedestal
