Snapjack™

Elevated Interlocking Corner Connectors

Patent Pending

For estimates or samples, please click the button below.

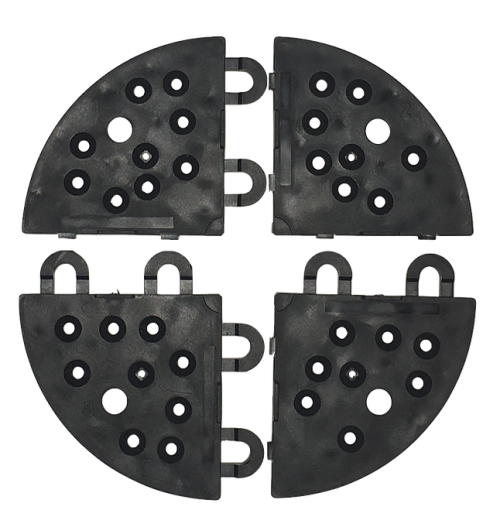

Top View

(Disconnected into 4 Pieces)

Each Corner Engraved with Numbers

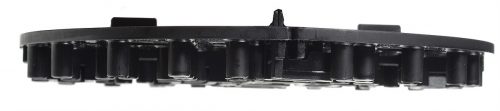

Side View

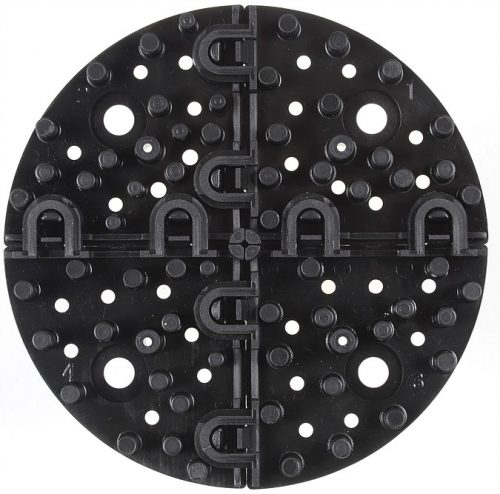

Bottom View

(4 Corners #1,#2,#3,#4 Snapped Together)

Diameter – 5-5/8″

Height – 1/2″

Static Load – 8,800 lbs

Support – Surface supported by 64 Legs

Locks – 16 latch locks; 4 sides w/2 male Parts; 4 sides w/2 female parts

Flammability – Meets UL94-HB standards

Material – High Impact Polypropylene

Fungus & Mildew Resistant – Yes

Service Range – -30° to +170°

Tensile Strength (psi) – ASTM D638 5300

Flexural Modulus –  (105 psi, 73° F) ASTM D790…1.6

Tensile Modulus –  (105 psi) ASTM 638…………….82

Specific Gravity – ASTM D792………………………….093

Specific Volume – In3/lb.………………………………30.5



Electrical Specifications

ARC Resistance, –  SEC. ASTM D495………………150

Dielectric Constant –  (1M Hz)…………………………2.5

Dielectric Strength –  (Volts/Mil………………………660

Resistant to – Weak Acids, Weak Alkalis ,Strong Alkalis

Protection Mat

3.2 mm thick 9 in. diameter

Plastic Plug

(For Use with Wood Structural Panels) Used to Create Proper Spacing and prevent lateral movement

Screw 1/2″

(For Use with Wood Structural Panels) Used for Stacking Snapjacks & various other applications

Washer &Screw 7/8″

(For Use with Wood Structural Panels) Provides Wind Lift Support

Polyurethane Adhesive
